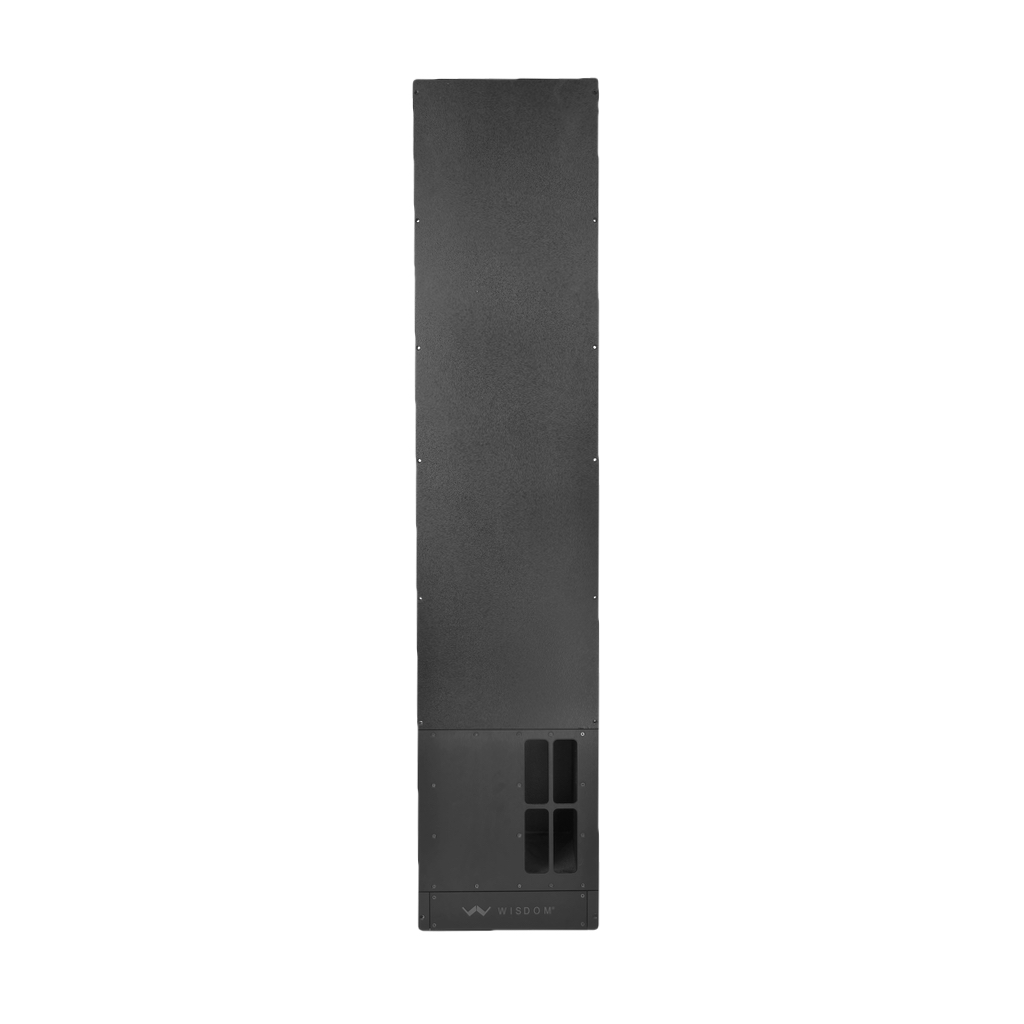

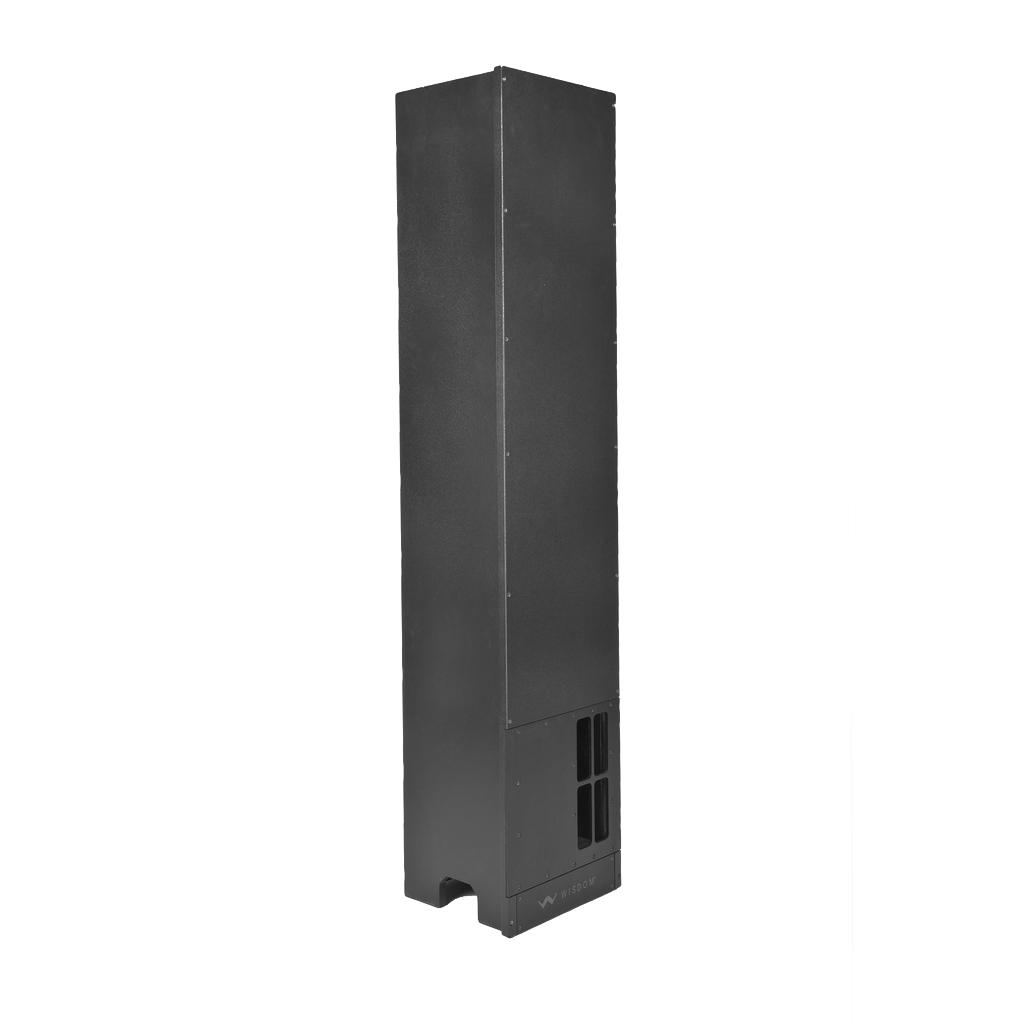

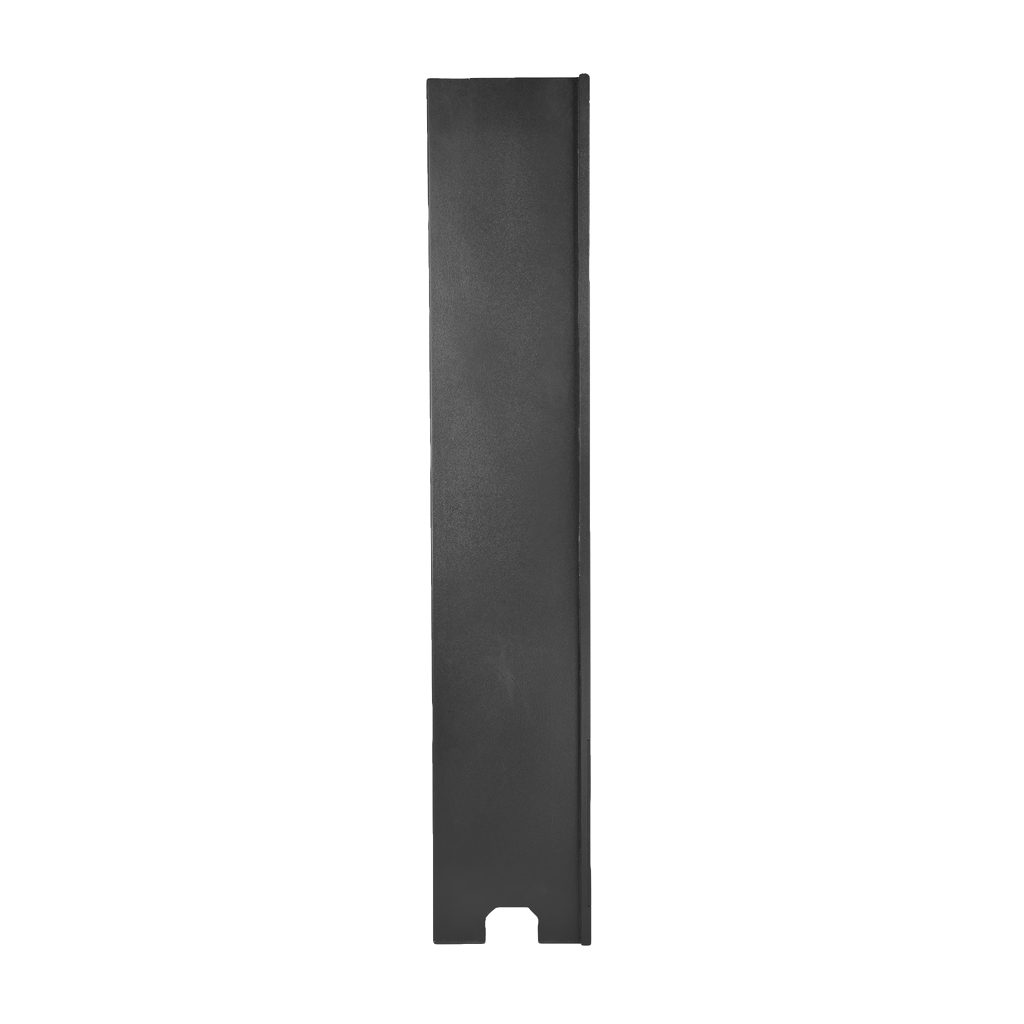

S110i

In-Wall RTL Subwoofer

The S110i follows closely in the footsteps of our flagship model STS, widely recognized as a benchmark in subwoofer performance. In installations where the STS is impractical due to its large size, the S110’s compact form factor neatly accommodates a wide range of installation options. The subwoofer can be positioned within a screen wall and secured with its integrated mounting flange; vented into the room with a flexible port kit from an adjacent space, basement, or attic. The S110i has an incredible maximum SLP of 128dB at 30Hz.

The Regenerative Transmission Line®

Regenerative Transmission Line® designs yielded the unique combination of high sensitivity, high output, and low distortion with the uniform and extended response we required. The result is extraordinary power and punch combined with a remarkable level of quickness, tunefulness and realism.

Key Features

In-Baffle
Behind-Baffle
In-Screen wall
Behind-Screen wall
Regenerative Transmission Line® design

Highly Detailed & Dynamically Accurate
Custom designed high-output 10” woofer

Optional floor/ceiling extension port kit available for venting into a space from an adjacent room, attic, riser, ceiling, and or floor.
Optional floor/ceiling extension port kit – S110i-f/c

Flat frequency response across a 28Hz-80Hz +/- 2dB operating range
(1) High operating woofer
DSP Required
(1) Channel of Power Amplification
Per subwoofer required

Specification

Frequency Response28Hz – 80 Hz ± 2dB relative to the target curve
Impedance6 ohms
Sensitivity96 dB / 2.83 V / 1m
Power Handling, Peak2000w
Maximum SPL128dB / 30Hz / 1m
Shipping Weight160 lbs. (72.5 kg)
Dimensions – HxWxD64.89” x 13.75” x 12” (165cm x 34.9cm x 30.5cm)

Resources

PDF File Icon

S110i Owner’s Manual

PDF File Icon

Optional S110i Port Extension Kit

PDF File Icon

S110i In-Wall Dimensions (PDF)

DWG File Icon

S110i In-Wall Dimensions (DWG)
