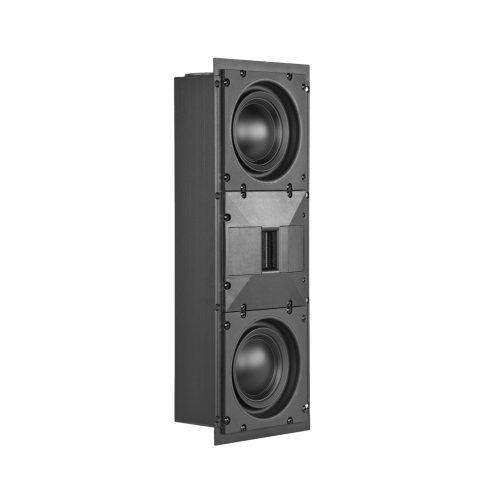

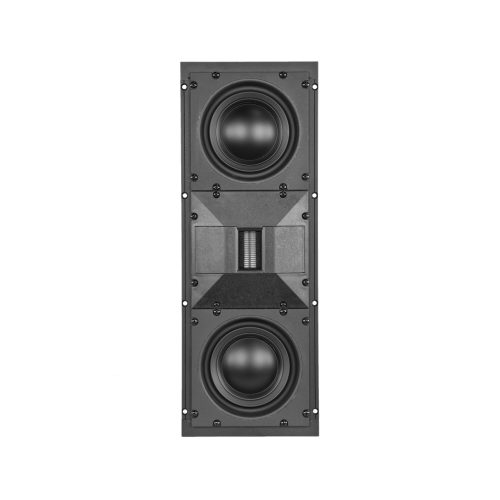

SAGE SERIES P20i

C20 Audiophile Top 25 of All Time AwardSound Image Award

Point Source In-Wall/Ceiling Loudspeaker

The Sage P20i offers the ultimate high-end audiophile loudspeaker in a slim and stylish design that fully integrates into any home. Perfectly suited for home theater and media rooms, P20i produces the highest level of sonic refinement and performance available from an in-wall speaker. The Sage P20i includes a large planar magnetic driver – and two robust 6” woofers for low distortion, high-resolution sound and a superior dynamic range. Innovative design delivers excellent bass performance in an incredibly small enclosure.

Architectural Design with Custom in Mind

Slim and elegant in design, the in-wall Sage P20i can be made to blends nicely into a your décor through our optional custom length grilles.

Big Bass in Small Boxes

Featuring Sage Series dynamic woofers that are more than twice as powerful as typical woofers for great bass without huge, ugly boxes that are difficult to place.

Key Features

In-Wall
In-Ceiling

Highly Detailed & Dynamic
(1) Planar Magnetic Driver
Covers 5 Octaves of Clarity
Light Weight Film PEEK
FAST acceleration

Available as On-Wall P20m
Available as Free-Standing P20
In-Wall / On-Wall / Free-standing
Can be Mixed and Matched
Custom Colors Available P20 & P20m
Custom Length Grilles Available P20i
Custom Length P20 & P20m
Anodized trim bezels P20 & P20m

Full Range Loudspeaker
(2) High operating woofers
Outboard Active Crossover
DSP Required
2-CH’s of Amplification Required

Specification

Frequency Response40Hz – 20kHz ± 2dB relative to the target curve
Impedance, Planar Section3 ohms
Impedance, Woofer Section5 ohms
Sensitivity, Planar Section87 dB / 2.83 V / 1m
Sensitivity, Woofer Section87 dB / 2.83 V / 1m
Shipping Weight21 lbs. (9.5 kg)
Dimensions HxWxD19.8” x 8.22” x 3.8” (50cm x 20.5cm x 9.6cm)

Resources

PDF File Icon

P20i Owner’s Manual

PDF File Icon

P20i Drawing (PDF)

DWG File Icon

P20i Drawing (DWG)

PDF File Icon

P20i Data Sheet

PDF File Icon

Uni-Grip Mounting Info Sheet
