SAGE SERIES C38

Point Source Free-Standing Horizontal Loudspeaker

The Sage C38 offers the ultimate high-end audiophile loudspeaker in a slim and stylish design that fully integrates into any home. Perfectly suited for home theater and media rooms, C38 produces the highest level of sonic refinement and performance available from a bookshelf speaker. The free-standing Sage C38 includes a large planar magnetic driver – and four robust 6” woofers for low distortion, high-resolution sound, and a superior dynamic range. Innovative design delivers excellent bass performance in an incredibly small enclosure.

Architectural Design With Custom In Mind

Slim and elegant in design, the free-standing Sage C38 can be made to blend nicely into your décor through our optional custom colors, lengths, and finishes.

Big Bass In Small Boxes

Featuring Sage Series dynamic woofers that are more than twice as powerful as typical woofers for great bass without huge, ugly boxes that are difficult to place.

Sage Series C38 angled view with silver bezel

Sage Series C38 front view with silver bezel

Sage Series C38 back view with silver bezel

Sage Series C38 side view with silver bezel

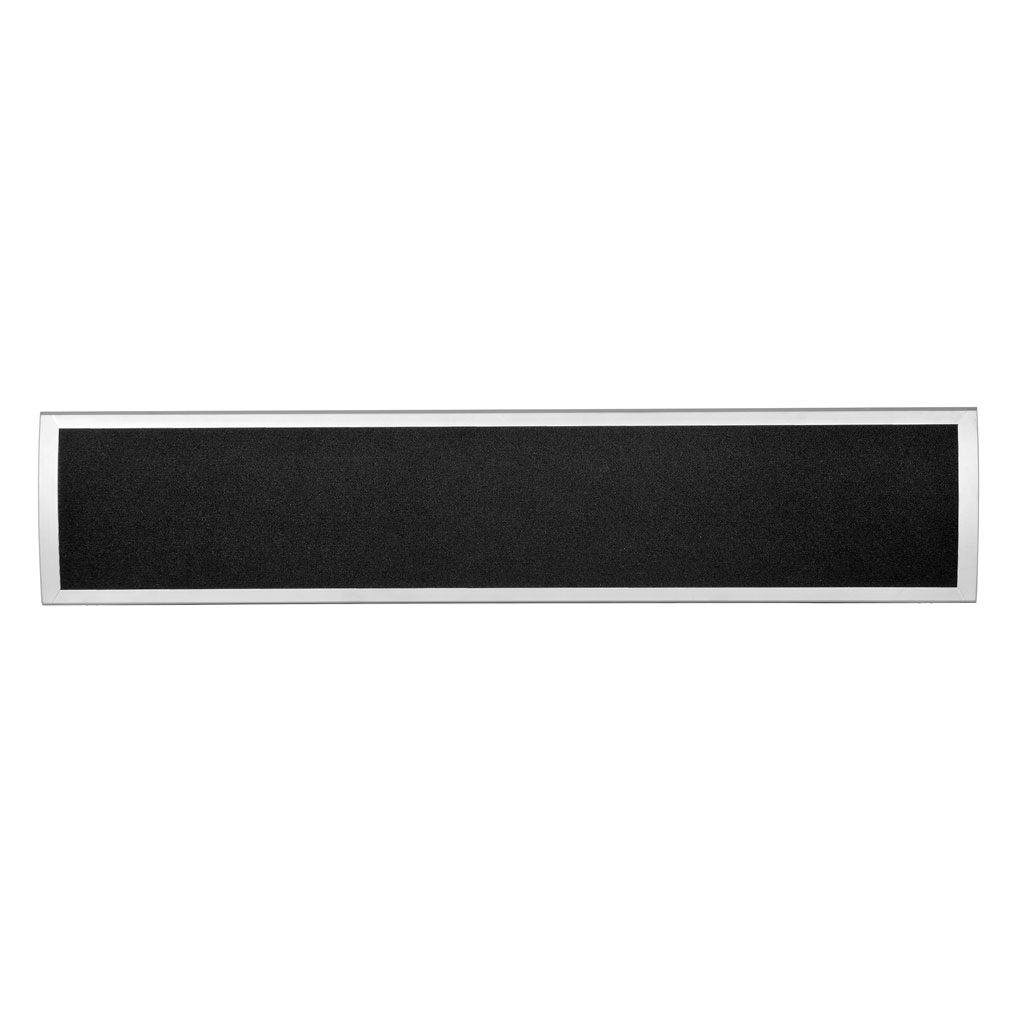

Sage Series C38 front view with silver bezel and grille

Key Features

Free-Standing

Highly Detailed & Dynamic
(1) MTM Planar Magnetic Drivers
Covers 5 Octaves of Clarity
Light Weight Film PEEK
FAST Acceleration

Available as In-Wall C38i
Available as On-Wall C38m
In-Wall / On-Wall / Free-standing
Can be Mixed and Matched
Custom Colors Available C38 & C38m
Custom Length Grilles Available C38i
Custom Length Available C38 & C38m
Anodized Trim Bezels C38 & C38m

Full Range Loudspeaker
(4) High Operating Woofers
Outboard Active Crossover
DSP Required
2-CH’s of Amplification Required

Specification

Frequency Response	40Hz – 20kHz ± 2dB relative to the target curve
Frequency Response, 30° Off Horizontal Axis	40Hz – 18kHz ± 2dB relative to the target curve
Impedance, Planar Section	3 ohms
Impedance, Woofer Section	3 ohms
Sensitivity, Planar Section	90 dB / 2.83 V / 1m
Sensitivity, Woofer Section	91 dB / 2.83 V / 1m
Shipping Weight, Each C38	37 lbs. (17 kg)
Dimensions HxWxD	7.2” x 34.2” x 7.34” (18.3cm x 86.87cm x 18.65cm)
