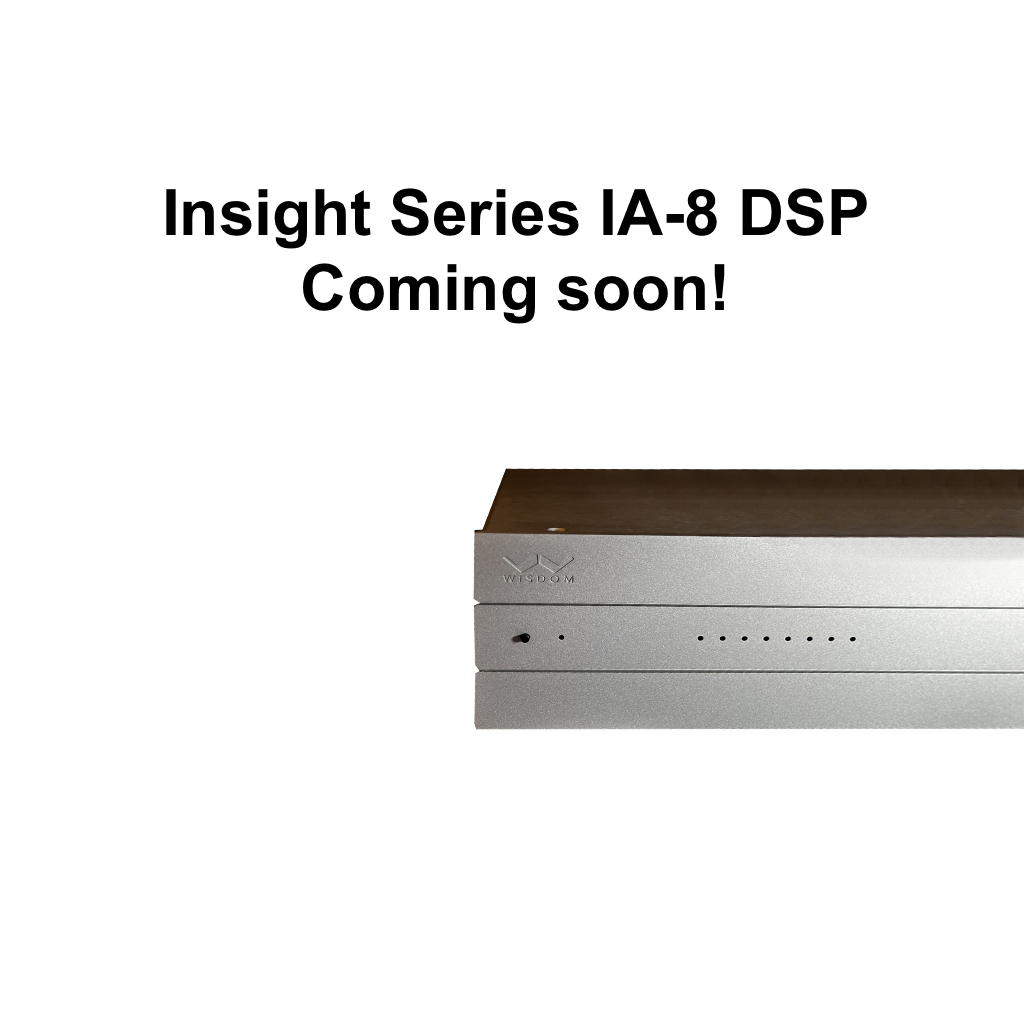

IA-8 DSP

Power Amplifier

Designed and built in the United States, the IA-8 DSP is a compact 2RU amplifier that delivers eight channels of high-performance amplification at 125W RMS per channel into eight ohms and 250W per channel into four ohms, all channel-driven. This DSP model adds a DSP board, enabling all eight channels to provide user EQ, delay, gain, and digital EQ profiles for our Insight Series and Subwoofers, in addition to Generic Speakers and Subwoofers. The high efficiency of the SA-series design also means that the amplifiers can be stacked on top of each other without undue overheating.

An optional Dante Digital Audio Input Kit is also available for purchase separately.

Key Features

Eight Channel
8 x 125 Watts into 8 ohms
8 x 250 Watts into 4 ohms

Flat Stackable
2RU

High Efficiency Design
Enormous Power Reserves

Specification

Number of Channels	8
Rated Power Output per Channel @ 8 ohms	125 w/ch continuous rms power @ 8 ohms above power ratings from 20 Hz–20 kHz at <1.0% THD
Rated Power Output per Channel @ 4 ohms	250 w/ch continuous rms power @ 4 ohms above power ratings from 20 Hz–20 kHz at <1.0% THD
Minimum Impedance	2 ohms
Frequency Response	5Hz – 45kHz, +0/-0.5dB
Dynamic Range	120 dB
Signal to Noise Ratio	-110 dB (ref 1V rms, A-wtd.)
Bridgeable Channels	No
Dimensions – HxWxD	3.75” x 17” x 13.63” (8.57cm x 43.2cm x 34.7cm)
