SUB1

Minimal Appearance Subwoofer

The SUB1 was designed to accompany the Sage Series ICS3 minimal appearance speaker providing dynamic low frequency down to 37 Hz from a 3″ opening. Sold separately, this amazing minimal-appearance subwoofer also works well in other tight spaces when space is a concern.

Key Features

Highly Detailed & Dynamically Accurate
Bandpass Subwoofer

Perfect for Small/Tight Spaces
3″ Vent Opening

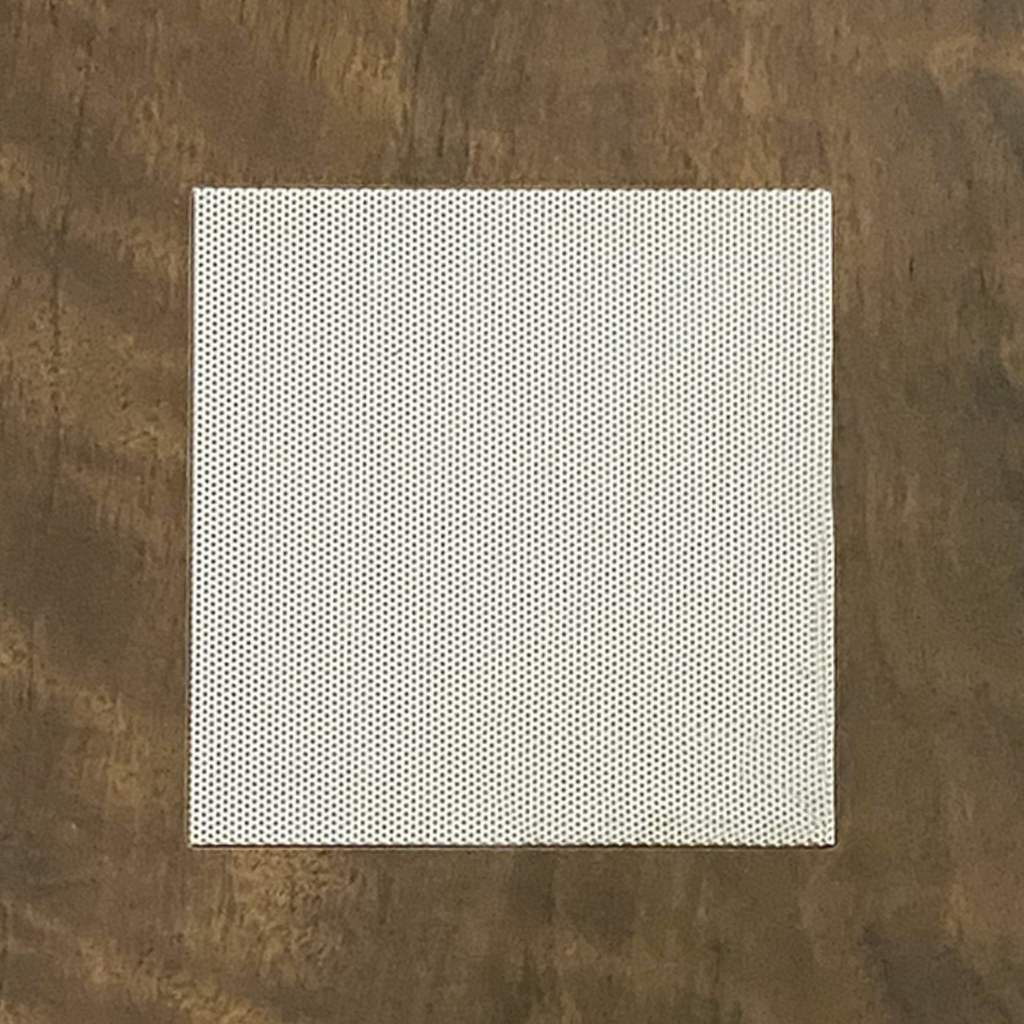

Available in 3″ & 4″ Round and Square
Flush Mount Grilles

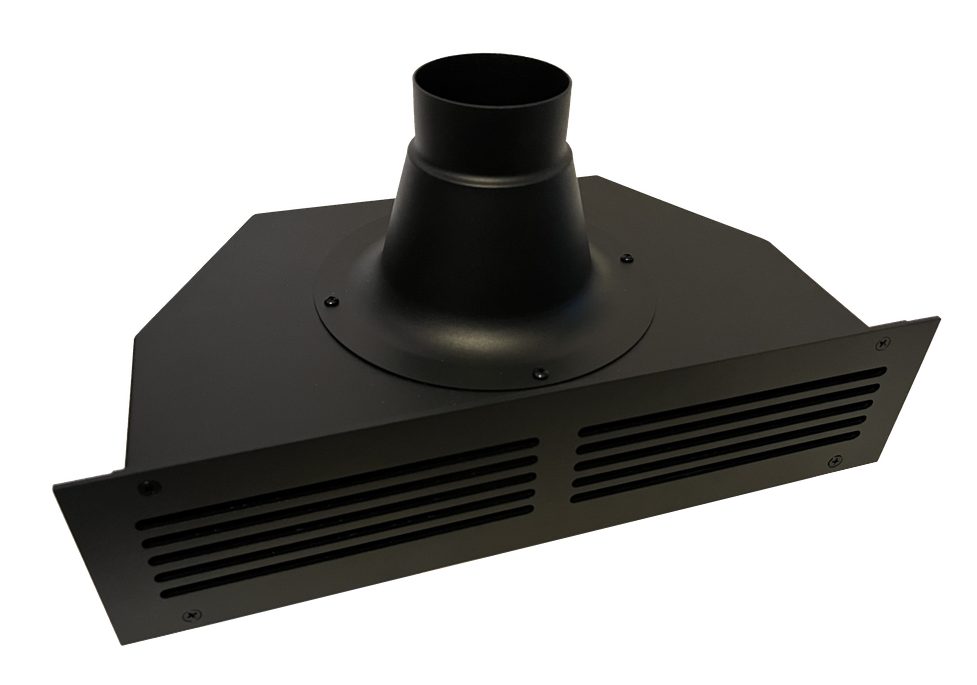

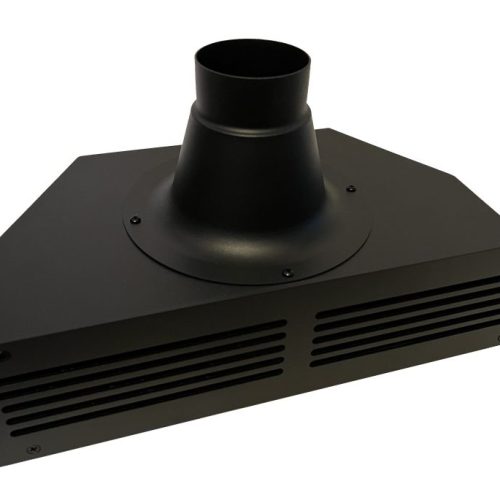

Optional Toe-Kick (Coming Soon)

Custom Toe-Kick Accessory Available
Custom Wood Round and Square Gilles Available
Custom Powder-Coated Round and Square 3” and 4” Grilles Available

(1) High Operating 8-1/2″ Woofer
(1) Channel of Power Amplification per Subwoofer Required

Specification

Frequency Response37Hz – 140 Hz +/- 3dB
Impedance, Planar Section8 ohms
Sensitivity85 dB / 2.83 V / 1m
Recommended Amplifier Power100 Watts
Maximum Amplifier Power300 Watts
Dimensions HxWxD7.9” x 10.5” x 19.25” (20.066cm x 26.67cm x 48.895cm)
Port Tube Length3″ x 24″ (7.62cm x 60.96cm)
Recommended High Pass Crossover35Hz 24dB Linkwitz–Riley
Recommended Low Pass Crossover120Hz 24dB Linkwitz–Riley
Product Weight25.4 lbs (11.5 kg)
Shipping Weight30 lbs (13.6 kg)

Resources

youtube

SUB1 Installation Video

PDF File Icon

SUB1 Owner’s Manual

PDF File Icon

SUB1 PDF Drawing

DWG File Icon

SUB1 DWG Drawing

PDF File Icon

Minimal Appearance Gypsum Installation Manual

PDF File Icon

Minimal Appearance Solid-Surface Installation Manual

PDF File Icon

Optional Toe-Kit Accessory Drawing & Installation Manual

DWG File Icon

SUB1 Solid Surface Grille Cutouts

PDF File Icon

SUB1 Solid Surface Grille Cutouts
