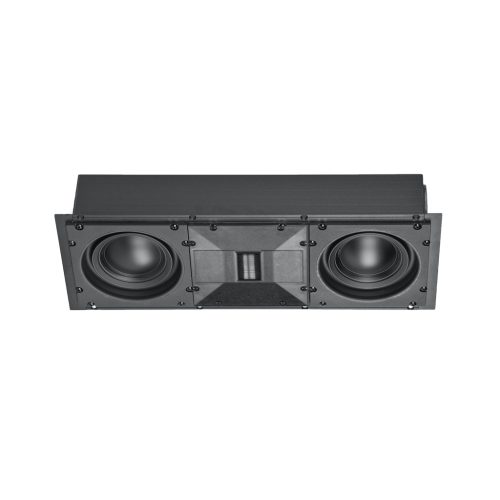

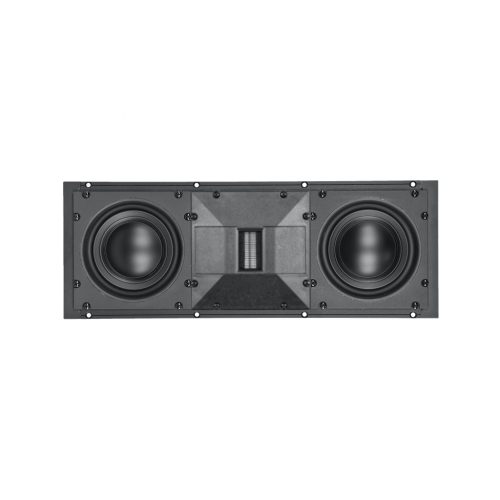

SAGE SERIES C20i

C20 Audiophile Top 25 of All Time AwardSound Image Award

Point Source In-Wall/Ceiling Horizontal Loudspeaker

The Sage C20i offers the ultimate high-end audiophile loudspeaker in a slim and stylish design that fully integrates into any home. Perfectly suited for home theater and media rooms, C20i produces the highest level of sonic refinement and performance available from an in-wall speaker. The Sage C20i includes a large planar magnetic driver – and two robust 6” woofers for low distortion, high-resolution sound and a superior dynamic range. Innovative design delivers excellent bass performance in an incredibly small enclosure.

Architectural Design with Custom in Mind

Slim and elegant in design, the in-wall Sage C20i can be made to blends nicely into a your décor through our optional custom length grilles.

Big Bass in Small Boxes

Featuring Sage Series dynamic woofers that are more than twice as powerful as typical woofers for great bass without huge, ugly boxes that are difficult to place.

Key Features

In-Wall
In-Ceiling

Highly Detailed & Dynamic
(1) Planar Magnetic Driver
Covers 5 Octaves of Clarity
Light Weight Film PEEK
FAST acceleration

Available as On-Wall C20m
Available as Free-Standing C20
In-Wall / On-Wall / Free-standing
Can be Mixed and Matched
Custom Colors Available C20 & C20m
Custom Length Grilles Available C20i
Custom Length Available C20 & C20m
Anodized trim bezels C20 & C20m

Full Range Loudspeaker
(2) High operating woofers
Outboard Active Crossover
DSP Required
2-CH’s of Amplification Required

Specification

Frequency Response40Hz – 20kHz ± 2dB relative to the target curve
Frequency Response, 30° Off Horizontal Axis40Hz – 15kHz ± 2dB relative to the target curve
Impedance, Planar Section3 ohms
Impedance, Woofer Section5 ohms
Sensitivity, Planar Section87 dB / 2.83 V / 1m
Sensitivity, Woofer Section87 dB / 2.83 V / 1m
Power Handling, Continuous200 Watts
Shipping Weight21 lbs. (9.5 kg)
Dimensions HxWxD8.22” x 19.8” x 3.8” (20.5cm x 50cm x 9.6cm)

Resources

PDF File Icon

C20i Owner’s Manual

PDF File Icon

C20i Drawing (PDF)

DWG File Icon

C20i Drawing (DWG)

PDF File Icon

C20i Data Sheet

PDF File Icon

Uni-Grip Mounting Info Sheet
