Superbars

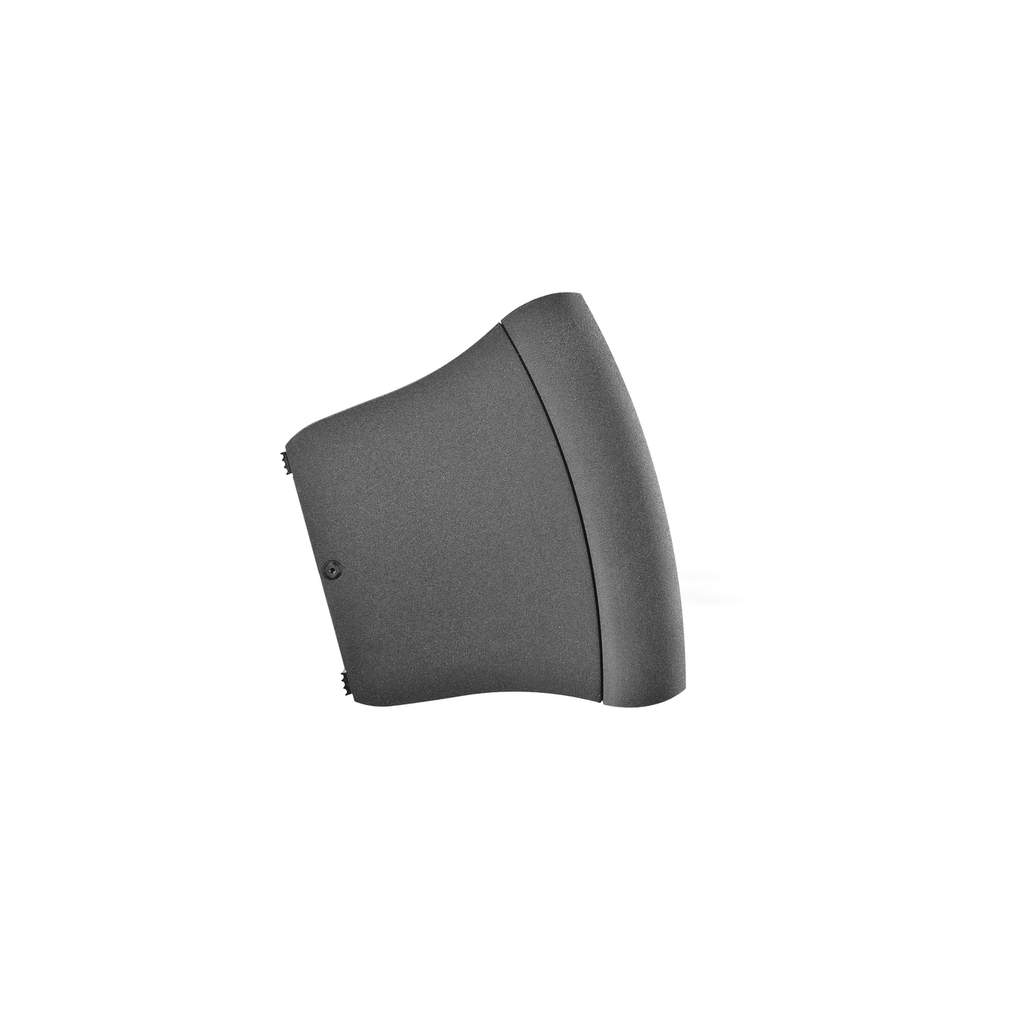

SAGE C20M X2 L&R SUPERBAR

Point Source On-Wall/Free-Standing

Sage Series C20m x 2 L&R Superbar is available in custom lengths of up to almost any length imaginable, and custom colors if the standard finish is not suitable for your environment and décor. Our Superbars are specifically designed to avoid the compromises inherent in conventional speaker designs. There are no passive crossover components inside the speaker. Instead, there are direct connections from the amplifiers to their respective High-Pass and Low-Pass drivers and an external active crossover is used, such as the ones inside of our Wisdom SA-DSP (Digital Signal Processing) Amplifiers. It is truly a “system” design and not merely a collection of loudspeaker drivers in a box.

Please contact us to learn which products/amplifiers/ surround processors outside of our DSP Amplifiers will work with our speakers and subwoofers: Information@wisdomaudio.com.

Architectural Design With Custom In Mind

Slim and elegant in design, the Sage C20m x2 Superbar can be made to blend nicely into your décor through our optional custom finishes.

Big Bass In Small Boxes

Featuring Sage Series dynamic woofers that are more than twice as powerful as typical woofers for great bass without huge, ugly boxes that are difficult to place.

Key Features

On-Wall
Freestanding

Highly Detailed & Dynamic
(2) Planar Magnetic Drivers
Covers 5 Octaves of Clarity
Light Weight Film PEEK
FAST Acceleration

Available in 2/3 CH Configurations
Available as Free-Standing
On-Wall / Free-standing
Custom Colors Available
Custom Length Available
Anodized Trim Bezels

Full Range Loudspeaker
(2) Planar Magnetic Driver
(4) High operating Woofers
Outboard Active Crossover
DSP Required
4-CH’s of Amplification Required

Specification

Frequency Response40Hz – 20kHz ± 2dB relative to the target curve
Impedance, Planar Section3 ohms
Impedance, Woofer Section5 ohms
Sensitivity90 dB / 2.83 V / 1m
Shipping Weight 55 lbs+ (weight will vary depending on custom length)
Min – Max Length38″ – 146″
Amplifier Channels Needed4

Resources

PDF File Icon

Wisdom Audio Superbar Spec Sheet

PDF File Icon

C20M X2 Superbar On-Wall Drawing (PDF)

DWG File Icon

C20M X2 Superbar On-Wall Drawing (DWG)

PDF File Icon

C20M X2 Superbar Free-Standing Drawing (PDF)

DWG File Icon

C20M X2 Superbar Free-Standing Drawing (DWG)
