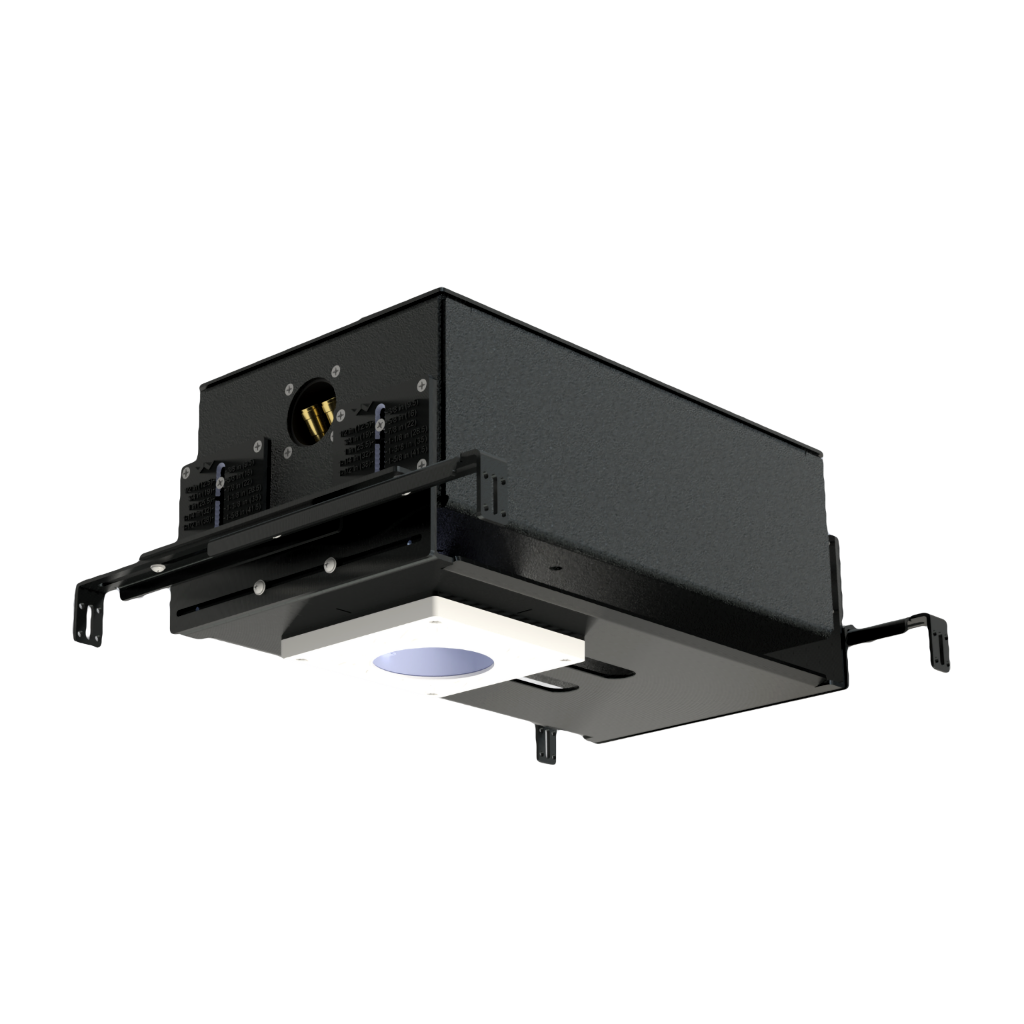

SAGE SERIES ICS3FR

Point Source In-Ceiling Minimal Appearance Loudspeaker

Shipping Date To Be Announced

The Minimal Appearance iCS3FR (and optional SUB1 Subwoofer) in-ceiling solution is designed to provide architecture-friendly, high-resolution playback while matching 3″– 4″ recessed round and square lighting fixtures. The iCS3 spiral Planar Magnetic Driver offers unmatched ultra-wide dispersion and can reproduce down to 50Hz without a subwoofer if desired, while the SUB1 subwoofer delivers unparalleled output delivering an amazing, yet interior designer appearance when more bass output is required.

Behind the high performance of the iCS3 in-ceiling speaker is a new Spiral Planar Magnetic Driver (SPMD). This engineering breakthrough offers super-wide dispersion down to 900Hz from the SPMD before crossing over to the 6.5″ woofer allowing sound energy to be evenly distributed throughout the listening space without having to use as many speakers as our competitors.

Key Features

Highly Detailed & Dynamic
(1) Spiral Planar Magnetic Driver
Covers 5 Octaves of Clarity
100° Wide Dispersion
FAST Acceleration

Matches Both 3″ and 4″ Architectural Lighting

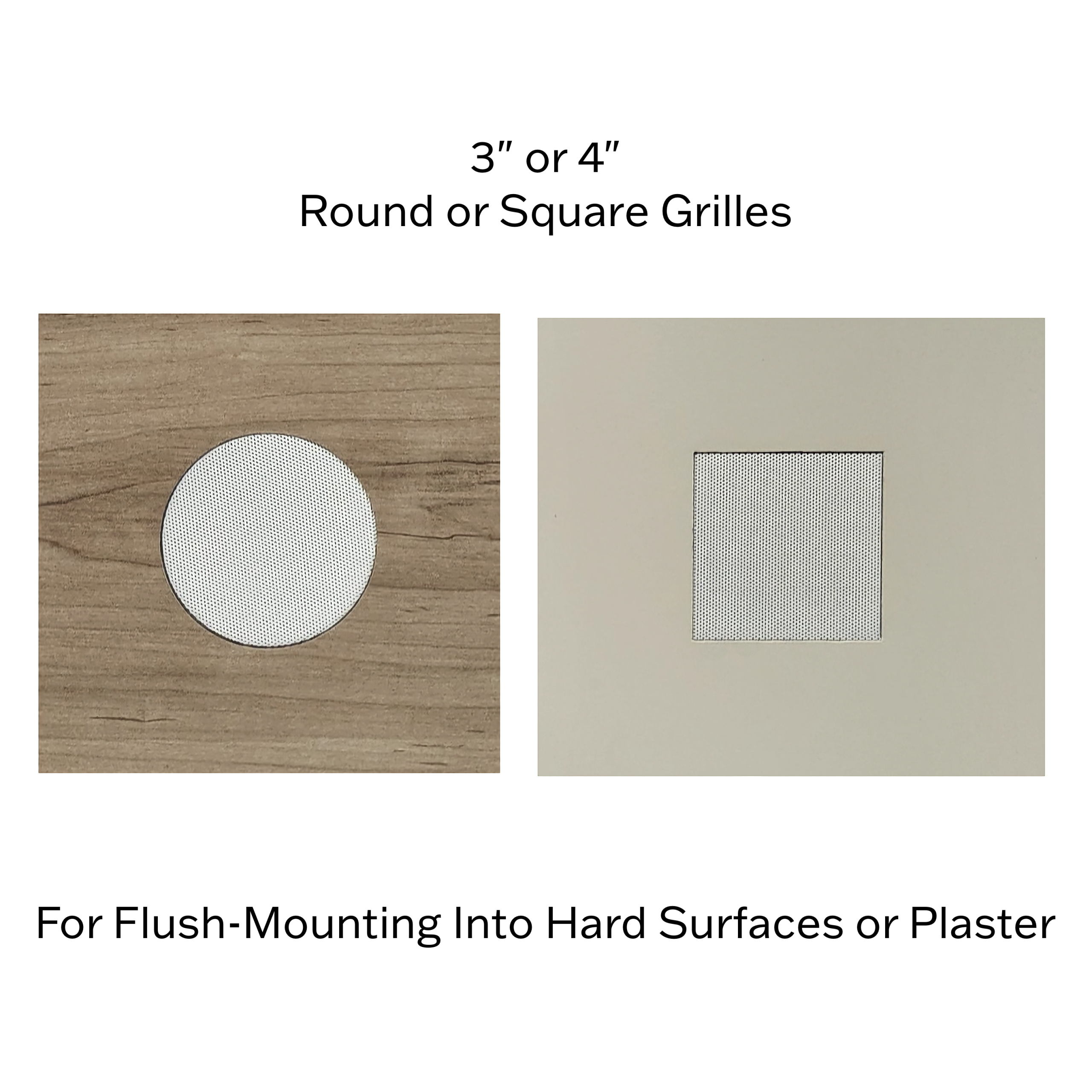

Available in 3″ & 4″ Round and Square
Flush Mount

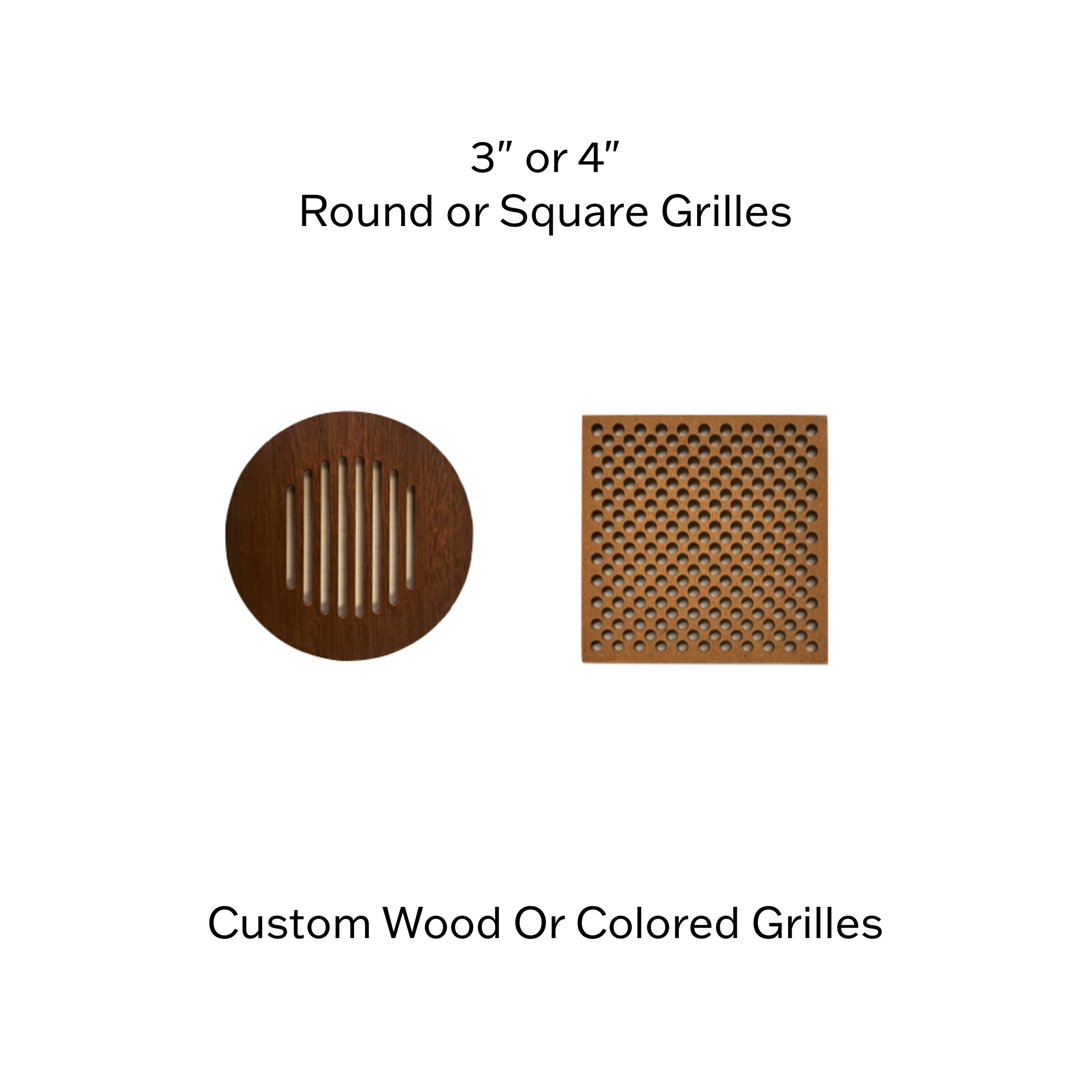

Custom Wood Round and Square Gilles Available
Custom Powder-Coated Round and Square 3” and 4” Grilles Available
Fire Rated Back Boxes Available

Sealed Backbox
Passive Crossover
6.5″ High Performance Woofer
1-CH’s of Amplification Required

Specification

Frequency Response	50Hz – 20kHz +/- 3dB
Impedance	6 ohms
Sensitivity	82dB / 2.83V / 1m
Minimum Recommended Power	100 Watts
Maximum Recommended Power	200 Watts
Coverage Angle (-6dB)	120° Circular
Standard 3″ Round & Square Grille O.D.	3″ (7.62cm)
Optional 4″ Round & Square Grille O.D.	4″ (10.16cm)
Recommended High Pass Crossover For Optional Subwoofer	80Hz 24dB Linkwitz–Riley
Dimensions LxW	19.25″ x 10.5″ [48.9cm x 26.7cm)
Required Ceiling Installation Depth (Designed for 2×8 Stud Depth)	Maximum: 7.125″ [181mm] with 0.5″ [12.5mm] Solid Surface Minimum: 5.75″ [146mm] with 2″ [50mm] Solid Surface Typical: 6.875″ [174.63mm] when used with 5/8 [16mm] Drywall
Ceiling Joist Width	16″ [383mm] On-Center Nominal
Installation Width Inside Ceiling Support Joists	14.5″ [368mm] Nominal – 16″ OC Joist 23″ [584mm] MAX – 24″ OC Joist 10″ [254mm] MIN – 12″ OC Joist
Gypsum / Mud-in Finished Surface Thickness	1/2″ and 5/8″ [12.5mm and 15.75mm] standard as shipped;
Solid Surface Finished Surface Thickness	1/2″ Minimum to 2″ Maximum [12.5mm – 50mm] 1/8″ [3.25mm] increments
Weight	17lbs [7.7kg]
Shipping Weight	21lbs [9.5kg]
