VCA 16

SAGE CINEMA VCA16

Vertical Column Array On-Wall Loudspeaker

Shipping Date To Be Announced

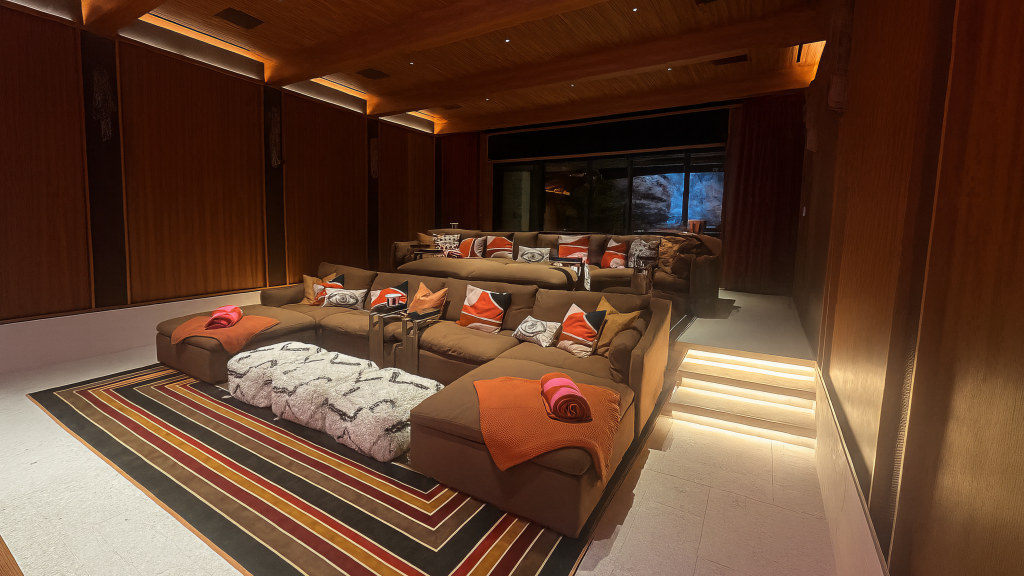

Targeting high-performance media rooms and private cinemas, Our patent pending Perfect ArrayTM is a result of years of research and development of our Line Source Planar Magnetic Driver. A new patent pending design curved planar magnetic line source diaphragm for the high frequency and curved array of woofers in combination for unparalleled power over distance in a smaller speaker then ever possible. The Sage Cinema Series models are dedicated to hidden installations behind projection screens and fabric walls. Featuring a curved 16” Planar Magnetic Driver, and four long linear excursion, high-output woofers.

Eliminate Floor and Ceiling Reflection

The Line Source design eliminates floor and ceiling reflection while distributing sound levels uniformly across the width of any room.

Power Over Distance

Line Source provides a much better power constituency than a point source. This is a great benefit when designing an entertainment system in large modern open-floor living spaces as well as multi-tier theaters.

Key Features

On-Wall

Eliminate Floor and Ceiling Reflection
Enhance Clarity
More Power Over Distance
Share Experience

Highly Detailed & Dynamic
(1) 16” Planar Magnetic Driver
Rotating PMD +/-45 degrees horizontal adjustment
Covers 5 Octave of Clarity
Light Weight Film PEEK
FAST Acceleration

Built in Wall Mount with +/- 20 degrees vertical adjustment
(4) High Output 7″ Woofers
DSP Required
1-CH of Amplification Required

Specification

Frequency Response80Hz – 20 kHz ± 3dB
Impedance6 Ohms
Power Handling, Continuous400 Watts
Sensitivity91dB (2.83V/1m)
Max SPL117dB Continuous / 123dB Peak
Coverage Angle (-6dB) Horizontal120 degrees
Coverage Angle (-6dB) VerticalLine Height with -20 degree curve
Reference “on-Axis” Vertical Angle-7.5 degrees
Net Weight32 lbs (14.5kg)
Shipping Weight42 lbs (19 kg)
Dimensions HxWxD48″ x 7.75″ x 5.77″ (1219.2mm x 196.9mm x 146.6mm)

Resources

PDF File Icon

Prelim VCA16 Owner’s Manual

PDF File Icon

2D Drawing (PDF) – Coming Soon

DWG File Icon

2D Drawing (DWG) – Coming Soon

Zip File Icon

3D Model – Coming Soon
